Scribe

Video capture platform.


  • 7th generation Intel® Core™ i7-7700 Processor 3.6GHz (Up to 4.2GHz, 8MB Cache)
  • Convenient single, dual and quad channel HDMI/SDI video capture cards
Solution

Broadcast

Specifications

System

Mechanicals

Scroll For More

Processor 7th generation Intel® Core™ i7-7700 Processor 3.6GHz (Up to 4.2GHz, 8MB Cache)
Memory Up to 32GB DDR4 2133MHz SODIMM
Storage Up to 2.5TB (1 x mSATA; 2 x 2.5″ HDD or SSD)
Connectivity LAN 1: Intel® i219-LM Gigabit Ethernet
LAN 2: Intel® i210 Gigabit Ethernet
Graphics Intel® HD Graphics 530
Displays Capability Supports Dual 4K Display
USB 4 x USB 3.0 (Rear)
Expandability 2 x LAN (RJ-45)
1 x Serial (RS-232)
1 x Serial (RS-232/422/485)
2 x DisplayPorts
1 x HDMI
1 x Line Out
1 x Mic In
Warranty 3 Year Hardware Warranty
Power Supply 250W High Efficiency Low Noise PSU
Thermals 50ºC (122ºF) Max at full CPU utilization
Cooling 3 x 40mm low noise fans
Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 5 ~ 90% Relative Humidity, Non-condensing
Storage Humidity 0 ~ 90% Relative Humidity, Non-condensing
Dimensions (w x h x d) 17.25 x 1.75 x 12 inches / 438 x 45 x 305 millimeters (without handles)
19 x 1.75 x 12 inches / 483 x 45 x 305 millimeters (with handles)
Weight 11 lbs / 5 kg (system)
14 lbs / 6.4 kg (shipping)

Show Details

Scribe Images

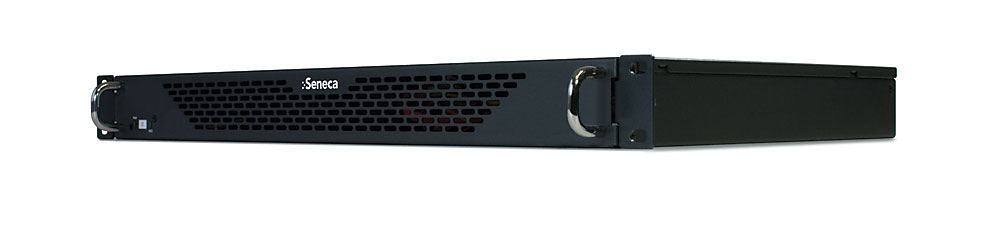

Front Left

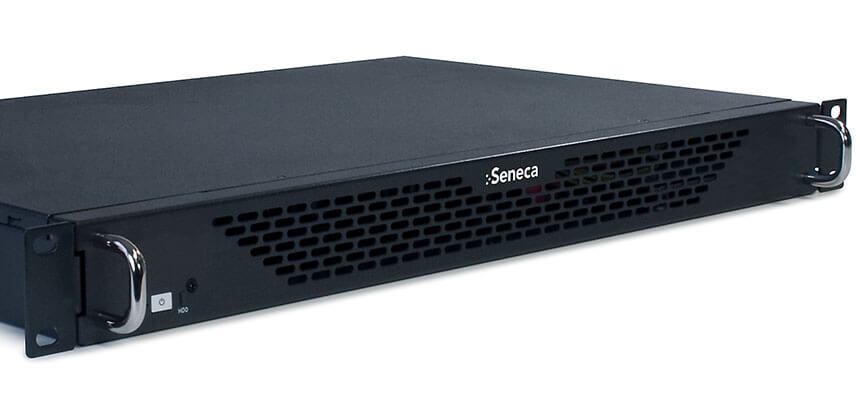

Front Right Top

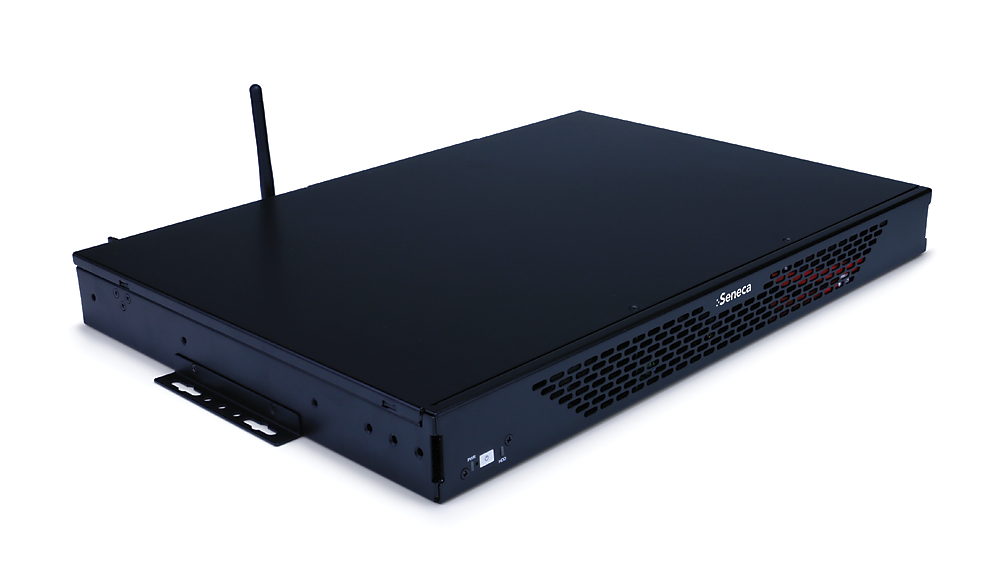

Front Right Top with Mounts
