Seneca VFX 9200 Workstation
Designed for CAD, Product Development, and Simulation Computing.
- Intel® Core™ X-Series Processors
- CAD, product development, and simulation computing
- Optional liquid cooling
- Supports up to 18 displays
Solution
Key Features
- Features the Intel® Core™ X-series processor family
- Supports up to 128GB of memory and allows multiple video adapters
- NVIDIA® Multi-GPU
Intel® Core™ X-Series Processors
Specifications
System

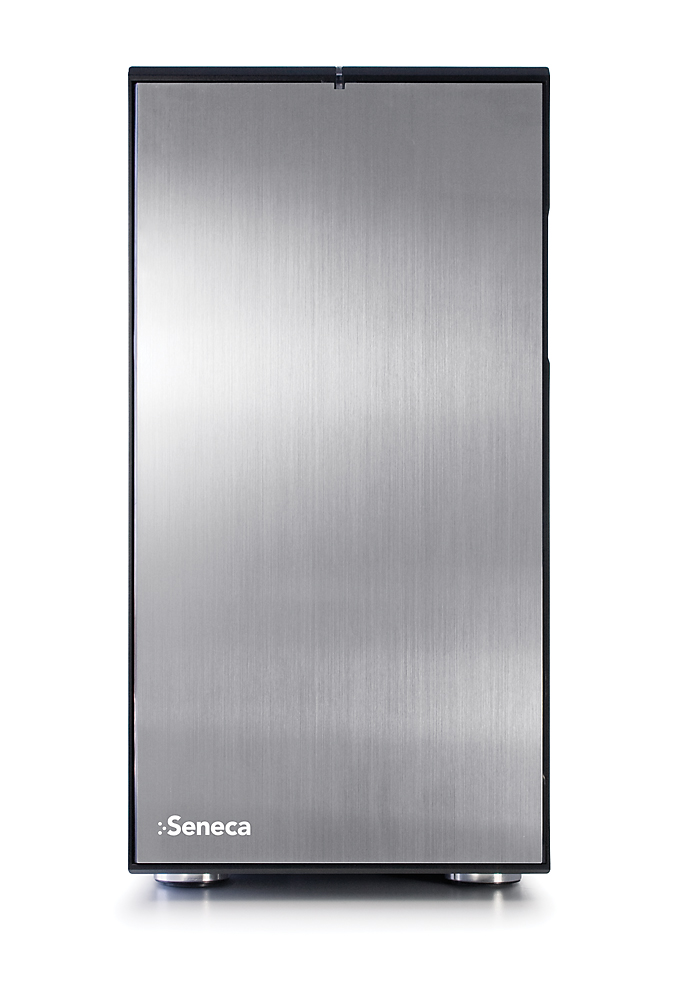

Tower Mechanicals

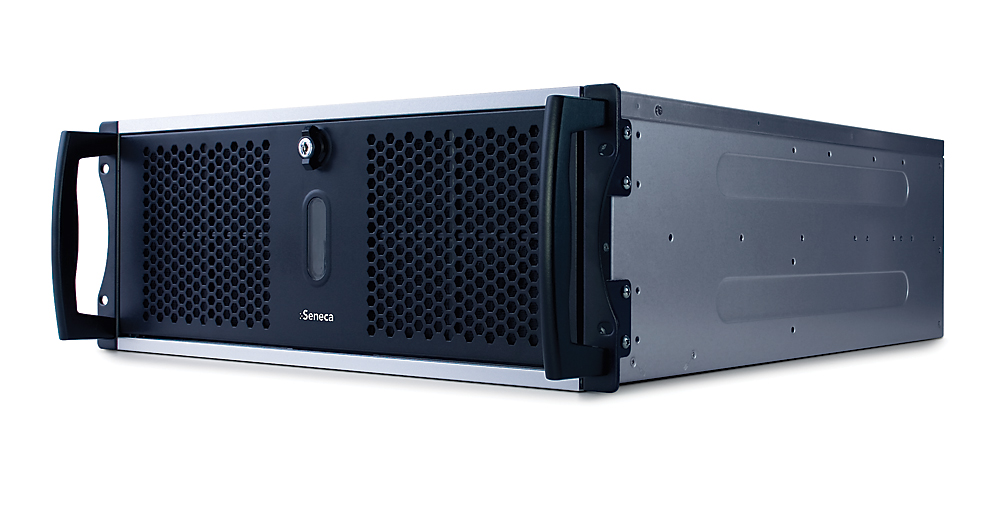

4U Rackmount Mechanicals
Scroll For More
| Processor | Intel® Core™ X-Series Processors |
| Operating System | Windows10 64-bit |
| Chipset | Intel® X299 |
| Memory | Intel® Core™ X-series Processors (6-core above): 8 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core): 4 x DIMM, Max. 64GB, DDR4 Non-ECC, Un-buffered Memory |
| Storage | 1 x M.2 x4 Socket 3 support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3 support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 |
| Optical Drive | 24x SATA DVD-RW; Optional: 16x Blu-Ray Writer |
| Devices | 75-in-1 Card Reader |
| Connectivity | Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN |
| Graphics | Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology |
| Supported Displays | Up to 18 displays |
| Audio | Realtek® ALC S1220A 8-Channel High Definition Audio CODEC |
| USB | 2 x USB 3.1 Gen 2 (Type-A + USB Type-C™) 4 x USB 3.1 Gen 1 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) |
| Expandability | 1 x RJ45 5 x Audio jacks 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button |
| Expansion Slot | 44-Lane CPU: 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 2 x PCIe 3.0 x4 (max at x4 mode)¹ 1 x PCIe 3.0/2.0 x1² 28-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1)³ 2 x PCIe 3.0 x4 (max at x4 mode)¹ 1 x PCIe 3.0/2.0 x1² 16-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)³ 2 x PCIe 3.0 x4 (max at x4 mode)1 1 x PCIe 3.0/2.0 x1² |
| Warranty | 3 Year Standard Warranty / 5 Year Optional |
| Form Factor | Tower |
| Power Supply | 860W ATX 80+ Platinum / Up to 1200W 80+ Platinum |
| Cooling | 2 x 120 / 140 mm fan (1 front, 1 back) Optional: Liquid Cooling |
| Front Interface | 2 x USB 3.0/2.0 Audio In/Out Reset button Fan Controller (behind door) Power button with LED (blue) |
| Dimensions (w x h x d) | 9.2 x 18.4 x 20.6 inches / 234 x 468 x 523 millimeters |
| Weight | 27.1 lbs / 12.3 kg |
| Form Factor | 4U Rackmount |
| Power Supply | Up to 1600W 80+ Platinum Power Supply (Redundant Power Optional) |
| Cooling | 1 x 70mm fan 2 x 80mm fans 3 x 120mm fans |
| Front Interface | 2 x USB 2.0 Reset button Power button with LED (blue) |
| Dimensions (w x h x d) | 16.9 x 6.9 x 21.5 inches / 429 x 175 x 546 millimeter |
| Weight | 29 lbs / 13.2 kg; 20 lbs / 44 kg (will vary based on configuration) |
