Seneca XK-1.3 Media Player
Media Players

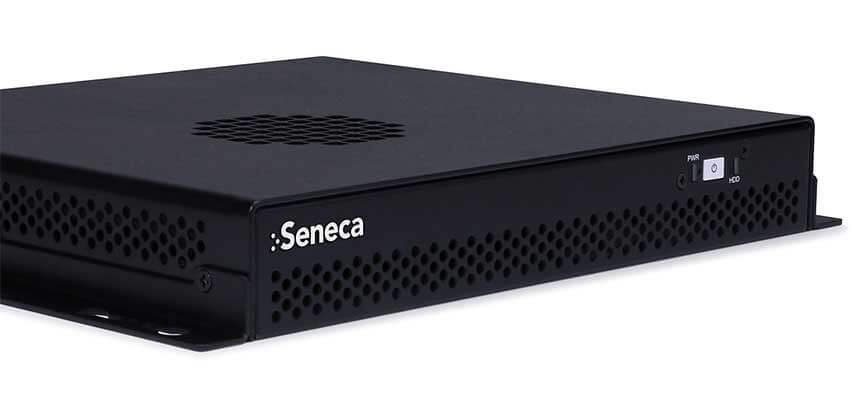

Seneca XK-1.3 Media Player

Full desktop performance in ultra-thin low profile media player.


  • 7th generation Intel® Core Processor Family
  • Stand only 1.3″ tall
  • Supports dual displays at 4K
  • HDCP passthrough
  • Direct HDMI output for simplified connectivity
  • Dual Gigabit LAN
Solution

Digital Signage

Specifications

System

Mechanicals

Scroll For More

Processor 7th generation Intel® Core Processor Family
Intel® Pentium® Processor
Operating System Windows 10 Pro
Windows 10
Windows 8.1 Pro
Windows 8.1
Windows 7 Professional Windows Embedded
Manufacturer Seneca®
Graphics Up to Intel® HD 530 Graphics
Video Outputs 1 x DisplayPort 1.2; 4096 x 2304 @ 60Hz
1 x HDMI 1.4; 4096 x 2160 @ 24Hz
Video Input Optional: 1 x HDMI 1.4a; Up to 1080p @ 60fps
Monitors Supported Dual Independent Monitors
Single Monitor Media Playback 2160p @ 60fps
Multiple Monitor Media Playback Dual: 2160p @ 30fps
Orientation Portrait and Spanning Capable
Audio 2/4/5.1/7.1 Channel ALC887 codec
Storage 1 x 2.5″ SSD
Memory Up to 32GB DDR4-1600MHz; 2 x SODIMM Slots
Connectivity 2 x 1GbE LAN Port
USB 4 x USB 3.0/2.0
Expandability 2 x LAN (RJ45)
2 x 3.5mm Audio Jacks
1 x DisplayPort
1 x HDMI
1 x DC Power Connector
1 x Serial Port (Optional)
2 x External Antenna Hole (Antenna Optional)
xpansion Slot  x Full Size Mini PCIe (mSata)
1 x Half Size Mini PCIe
Warranty 3 Year Depot Warranty
NBD Parts Replacement (Optional)
Thermals 0ºC to 40ºC / 32ºF to 104ºF
Power Draw 120W 19V AC Adapter
Cooling 1 x CPU Fan
Copper Extrusion Chassis Heatsink
Mounting VESA/Wall Mountable, Brackets included

Dimensions (w x h x d)

9 x 1.3 x 8 inches / 229 x 33 x 203 millimeters
Special Features Intel® vPro Technology Ready
