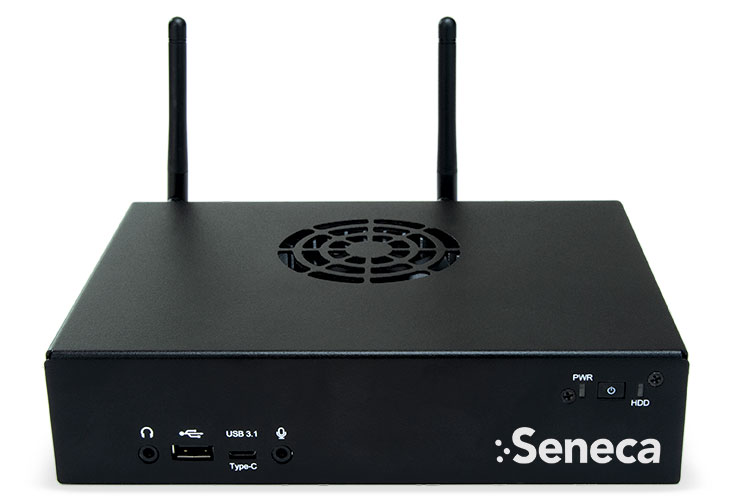

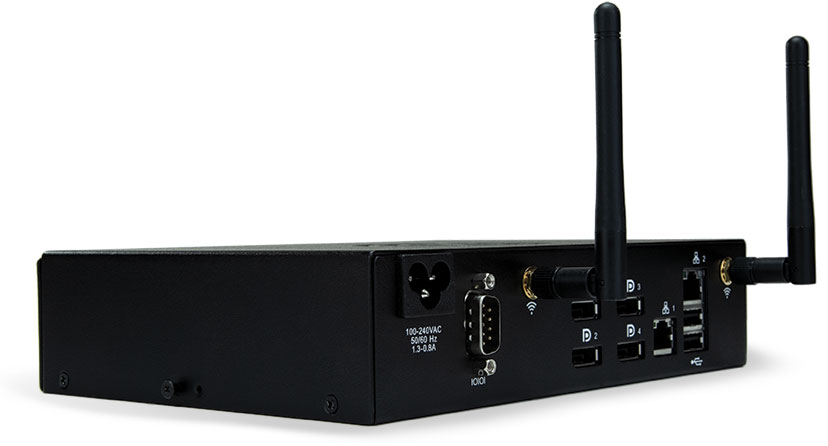

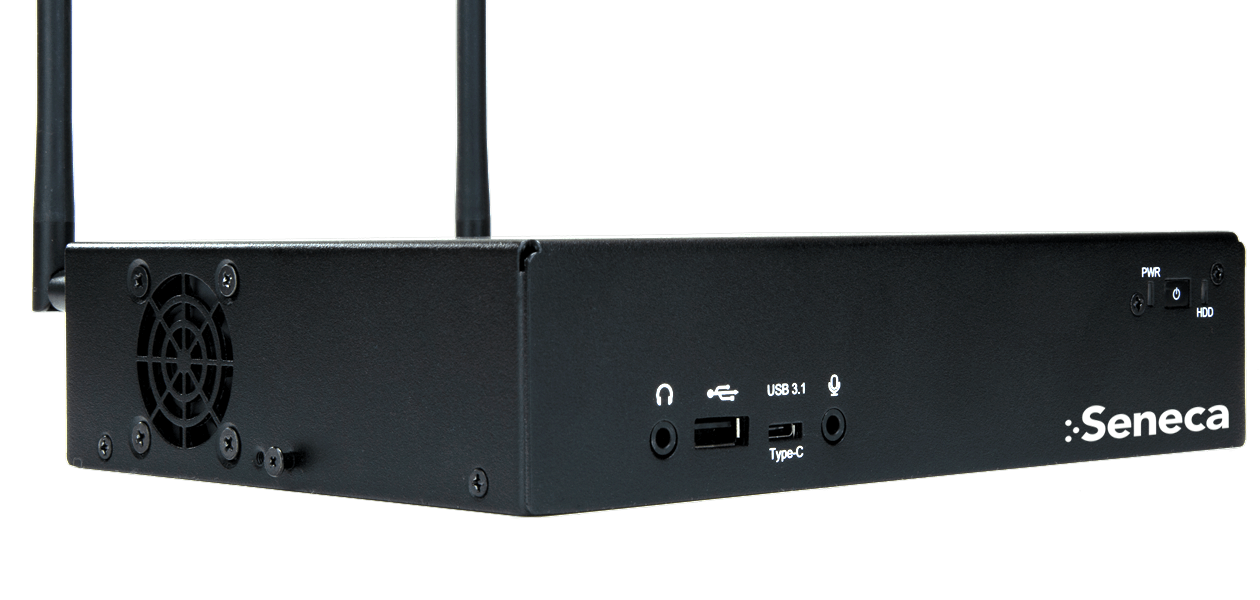

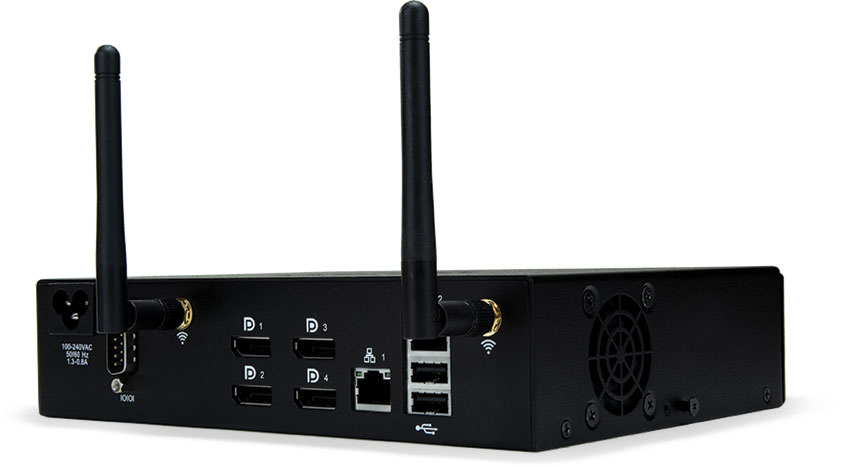

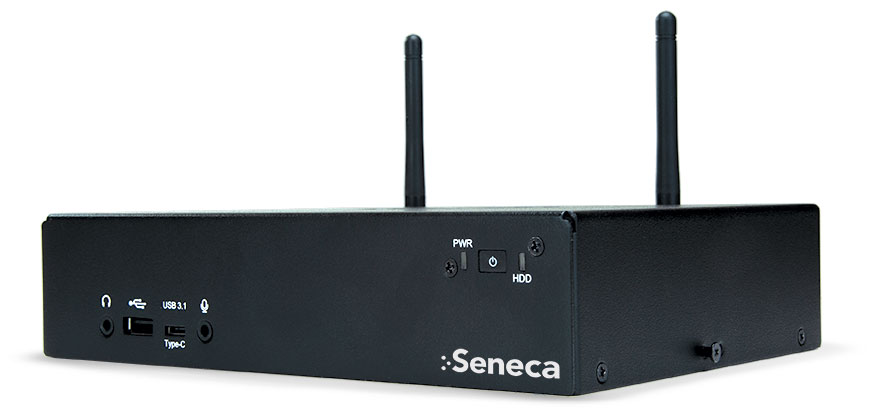

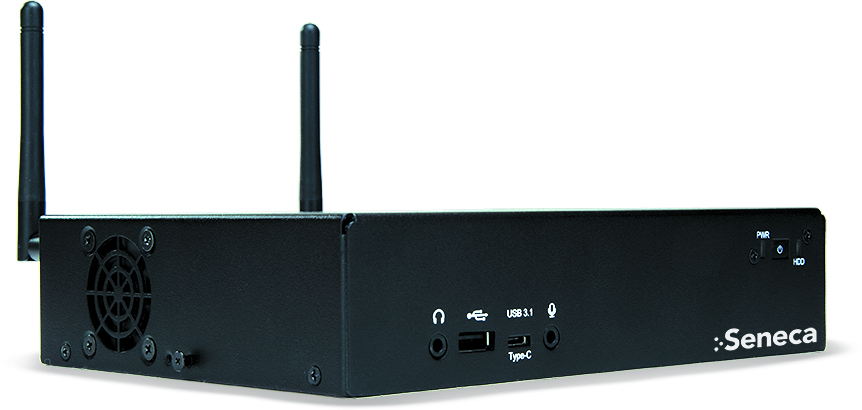

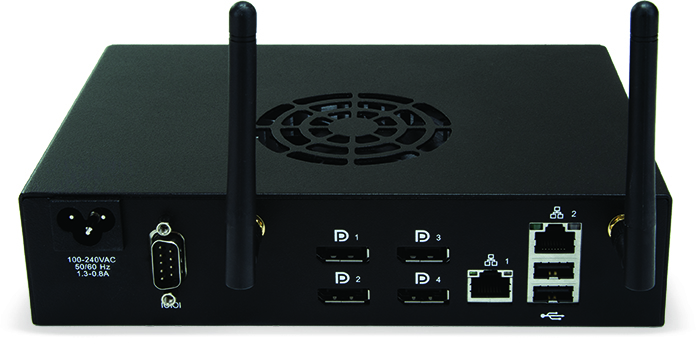

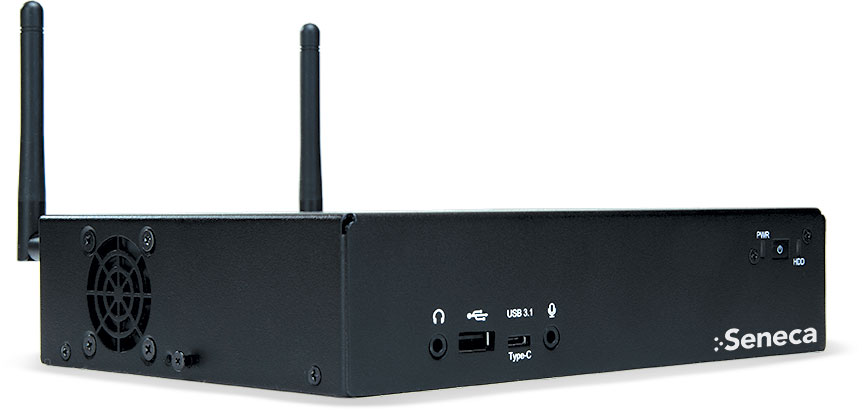

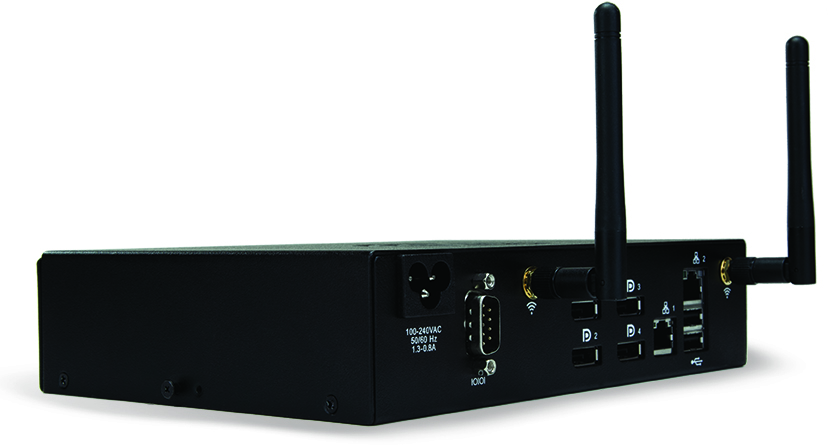

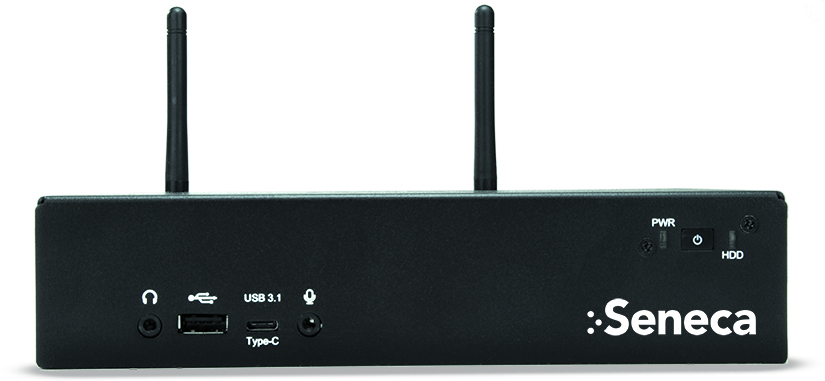

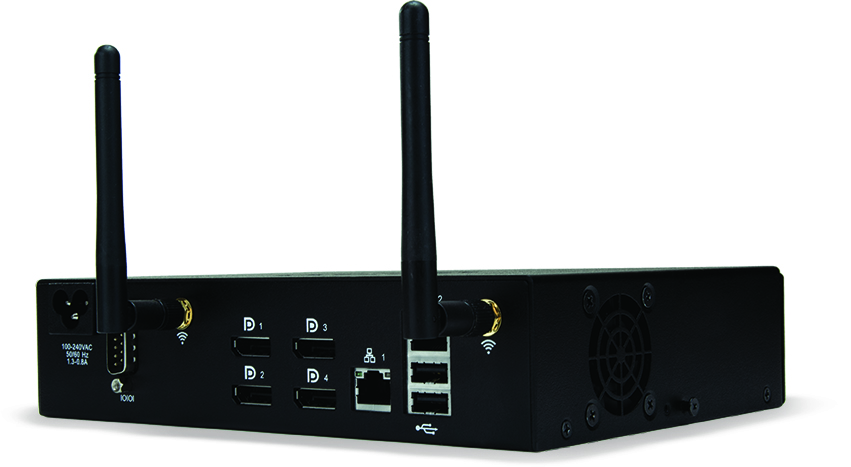

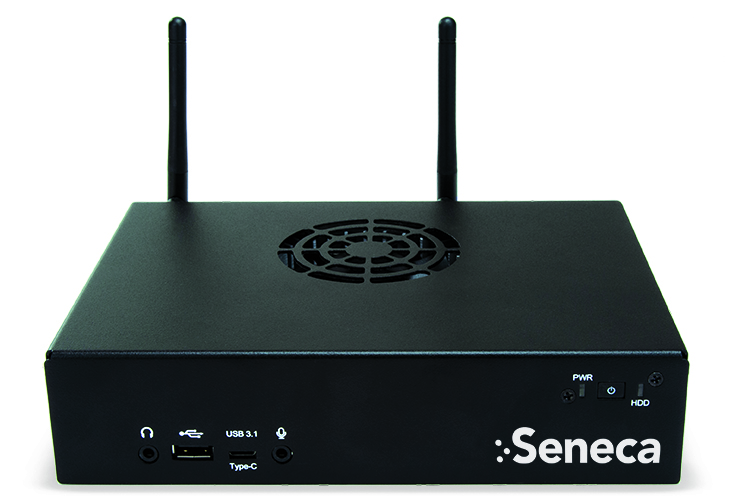

Seneca XK-QUAD Media Player
Pushing the boundaries of the common media player.
- Quad 4K Media Player
- USB 3.0 / USB 2.0
- AMD Ryzen V1000
- Dual Gigabit LAN
Solution
Key Features
- Supports 4 video streams at 4K
- Enterprise-class performance without the enterprise price premium
- Validated with leading CMS
- AMD Radeon Vega 8 Graphics
- Optimized performance settings
AMD Ryzen Embedded Processor Family
Specifications
System
Mechanicals
Scroll For More
| Processor | AMD Ryzen Embedded 4C/8T 3.25GHz (3.6GHz) |
| Operating System | Windows 10 64bit / Ubuntu |
| Manufacturer | Seneca® |
| Graphics | AMD Ryzen Embedded 4C/8T 3.25GHz (3.6GHz) |

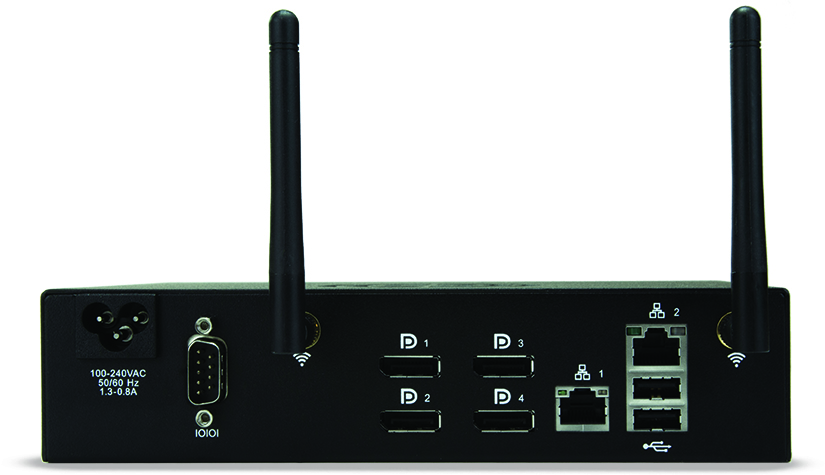

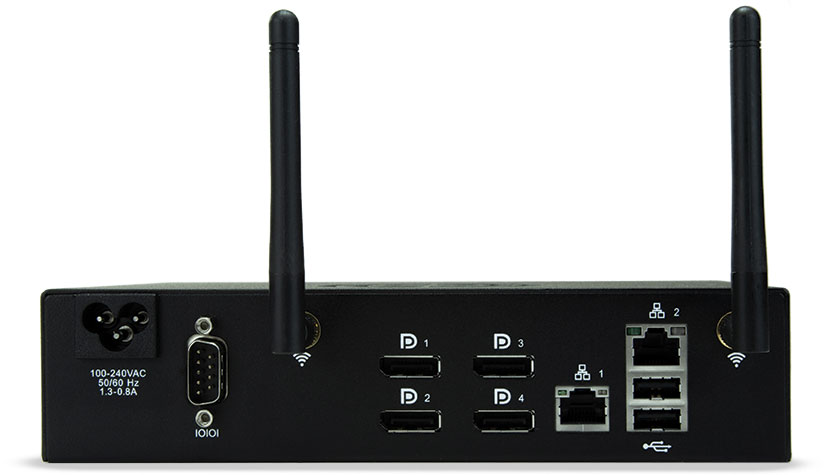

| Video Outputs | 4 x DisplayPort 1.4 |
| Monitors Supported | Four |
| Multiple Monitor Media Playback | Dual: 1080p @ 60fps |
| Storage | 250GB M.2 (Up to 2TB) |
| Memory | 8GB DDR4 2666MHz SoDImm (Up to 16GB) |
| Connectivity | 2 x GbE LAN (RJ45) Intel® Dual Band WiFi 802.11ac/BlueTooth |
| Connectivity | 1 x Intel® i219-LM 10/100/1000 Intel® Wireless-AC 8265 802.11ac 2×2 Bluetooth |
| USB | 1 x USB 3.0 (Type-C) 3 x USB 2.0 |
| Expandability | 1 x RS-232 Micro-USB Full-Duplex (TxD, RxD, CTS, RTS, GND)* 1 x Serial Port Full-Duplex (TxD, RxD, CTS, RTS, GND) (optional) |
| Warranty | 39-Month HW Depot Warranty |
| Power Supply | 50W 90-264VAC, 47-63Hz |
| Mounting | VESA/Wall Mountable, Brackets included |
| Dimensions (w x h x d) | 8.17 x 1.87 x 6.01 inches / 207.4 x 47.4 x 152.7 millimeters |
| Weight | 2.1 lbs / 0.95 kg |
