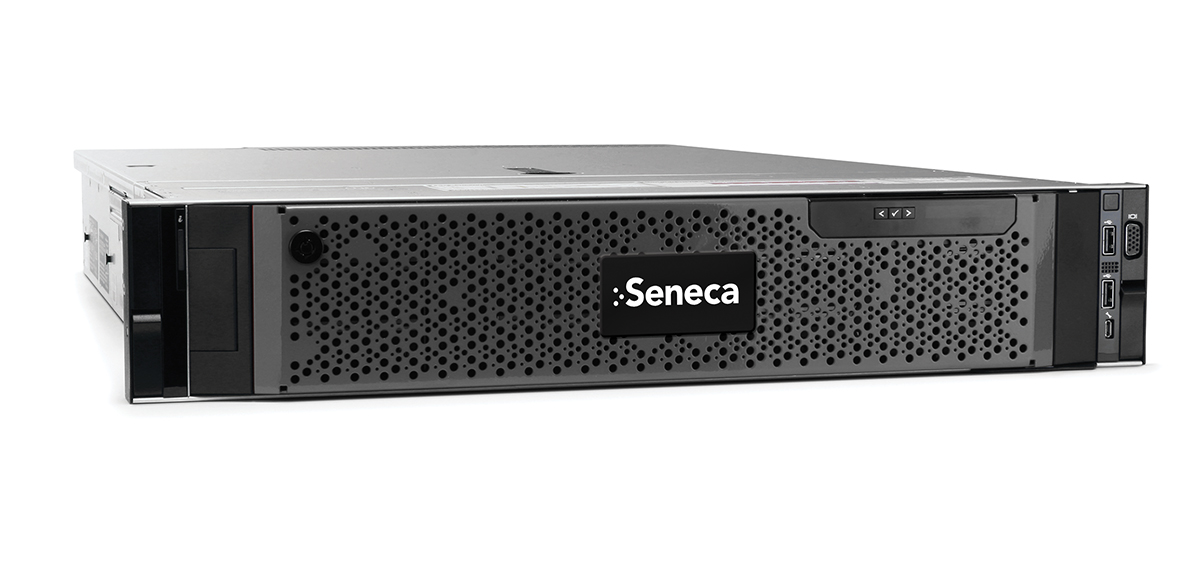

Seneca Certainty 400 Series Network Video Recorder
- 2 x Intel® Xeon® Silver Processor Family
- Five Year Global next day on-site service
- 216TB raw storage
- xConnect Monitoring Software
- RAID options 0, 1, 5, 6, 10
Solution
Key Features
- 5 Year Global next day on-site service
- Industry leading xConnect hardware monitoring ensures maximum up time
- Tested, validated and certified with top VMS applications
- Performance tunings optimized for specific VMS
- Provides 400-600 Mbps recording rate performance optimized for specific VMS
Intel® Xeon® Silver Processor Family
Client Viewing With The Seneca Certainty 400 Series
Client viewing for video monitoring is recommended on a separate hardware device to increase productivity and bandwidth constraints. Visit the xView Product Page to learn about viewing systems.
Xconnect Server Agent
xConnect Server Agent, created by Seneca, is designed to monitor, report and manage the environment and performance on xNVR server hardware.
Specifications
System
Mechanicals
Scroll For More
| Processor | 2 x Intel® Xeon® Silver Processor Family |
| Operating System | Windows Server 2016 Windows10 IoT |
| Manufacturer | Seneca |
| Memory | Default: 64 GB (8 x 8GB) DDR4 2666MHz ECC configured in Quad-Channel Mode Option: 96 GB (12 x 8GB) DDR4 2666MHz ECC configured in Six-Channel Mode |
| Maximum Data Storage | Up to 216TB RAW |
| Video Outputs | VGA Optional NVIDIA Quadro P1000 GPU Optional NVIDIA Quadro P2000 GPU |
| Networking | 4 x 1GbE (optional + 2x 10GbE SFP + Configuration) |
| USB | Front: 2 x USB 2.0 Rear: 2 x USB 3.0 |
| Expansion Slots | H840 Storage Expander Connect up to 4 JBOD Expansion Chassis @ 96TB each |
| RAID | Operating System RAID: 2 x 240GB SSD (RAID 1) Data RAID Level: PERC H740P JBOD, 0, 1, 5, 6, 10 |
| High Speed Live Drive | 2, 4, 6 or 8 x 1.2TB 10K SAS Option* |
| NVR Hardware Monitoring | Pre-installed with Seneca xConnect Server Agent; IDRAC 9 Basic |
| Warranty | 5 Year Global Next Day, Onsite Warranty Standard |
| Form Factor | 2U Rackmount |
| OS Drive Bays | 2 x M.2 BOSS PCIe Card |
| Data Drive Bays | Up to 18 x 3.5″ Hot Swappable |
| Power Supply | 1+1 750W hot plug redundant 80+ Platinum |
| Ambient Operating Temp | 10°C to 35°C (50°F to 95°F) |
| Operating Humidity | 5% ~ 90% non-condensing |
| Dimensions (w x h x d) | 17.08 x 3.4 x 28.16 in / 434 x 86 x 715 mm |
| Weight | 71.5 lbs / 32.5 kg fully populated |
