Seneca Confidence 100 series Network Video Recorder
Network Video Recorders

Seneca Confidence 100 series Network Video Recorder


  • Intel® Core™ i3 8100 Processor
  • Three Year Global next day on-site service
  • xConnect Monitoring Software
  • Up to 16TB of raw storage retention
Solution

Surveillance

Specifications

System (both form factors)

Mini Tower Mechanicals

1U Rackmount Mechanicals

Scroll For More

Processor Intel® Core™ i3 8100 Processor
Operating System Windows Server 2016; Windows 10 IoT
Manufacturer Seneca
Memory 8GB (1 x 8GB) DDR4 2400MHz
Maximum Data Storage Up to 16TB (8 and 16TB Configurations) Internal
Video Outputs VGA
Graphics Optional Discrete, NVIDIA NVS 315
Networking 2 x 1GbE
USB Front: 2 x USB 2.0; Rear: 2 x USB 3.0
Expansion Slots N/A
RAID Single or dual (RAID 1) 250GB SSDs for OS
High Speed Live Drive N/A
NVR Hardware Monitoring Pre-installed with Seneca xConnect Server Agent; IDRAC 8 express
Warranty 3 Year Global Next Day, On-site Warranty Standard
Form Factor Mini Tower
OS Drive Bays 2 x Fixed Internal 3.5″
Data Drive Bays 2 Fixed Internal 3.5″
Power Supply Single 365W
Dimensions (w x h x d) 6.89 x 14.17 x 17.9 in / 175 x 360 x 454 mm
Weight 26.10 lb / 11.84 kg
Form Factor 1U Rackmount
OS Drive Bays Up to 2 x Fixed Internal 2.5″ SSD
Data Drive Bays Up to 2 x Fixed Internal 3.5″
Power Supply Single 250W
Dimensions (w x h x d) 17.09 x 1.67 x 19.5 in / 434 x 42.8 x 495 mm without ears or bezel
Weight 20.96 lb / 9.51 kg

Show Details

Confidence 100 Series Mini Tower Images

Front Left

Front Right

Front Top

Front Top Left

Front Top Right

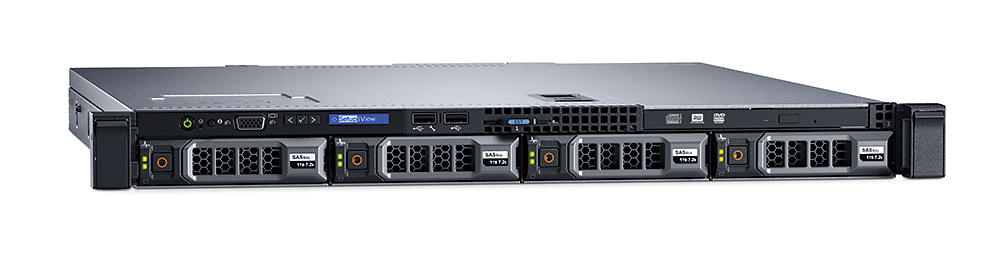

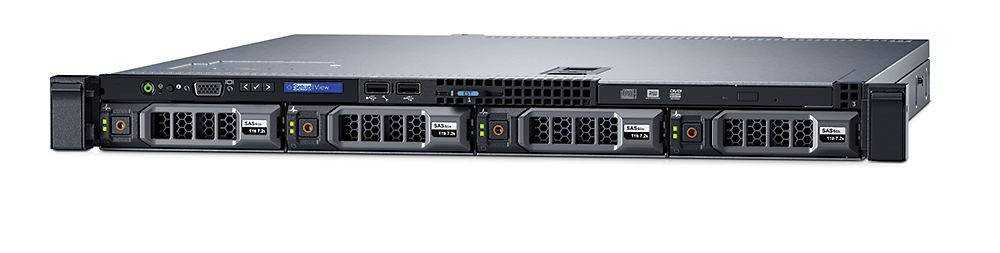

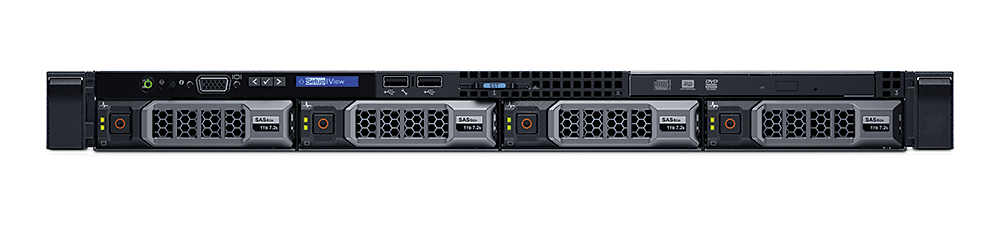

Confidence 100 Series 1U Rackmount Images

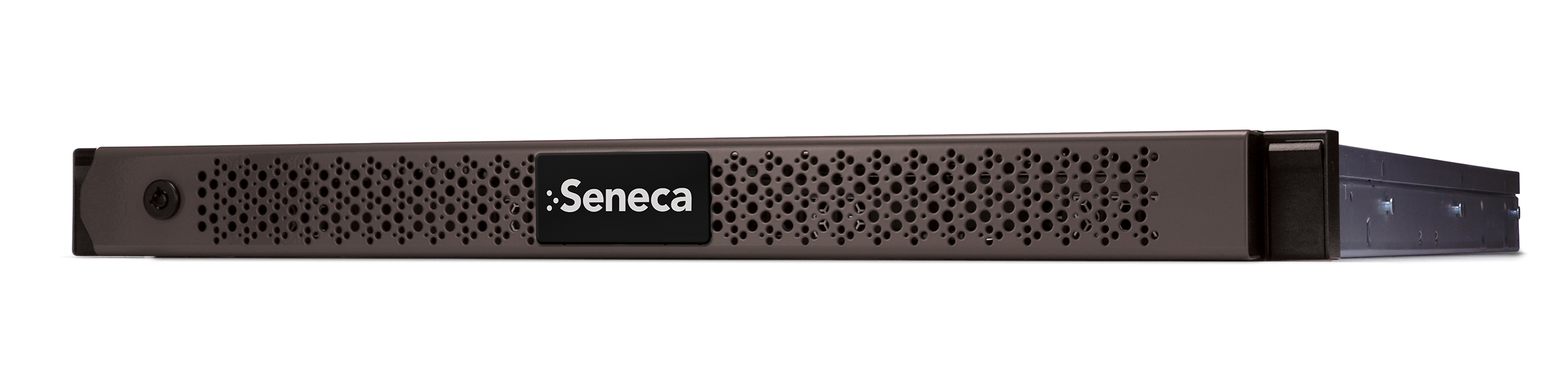

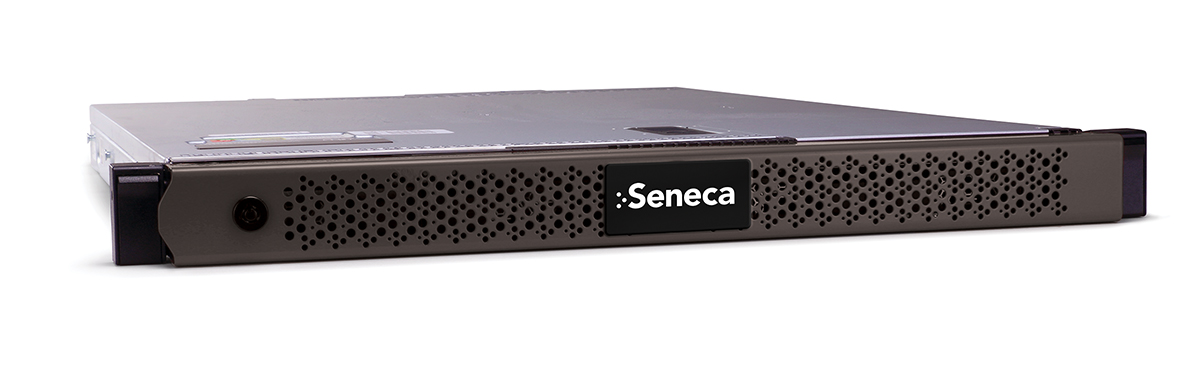

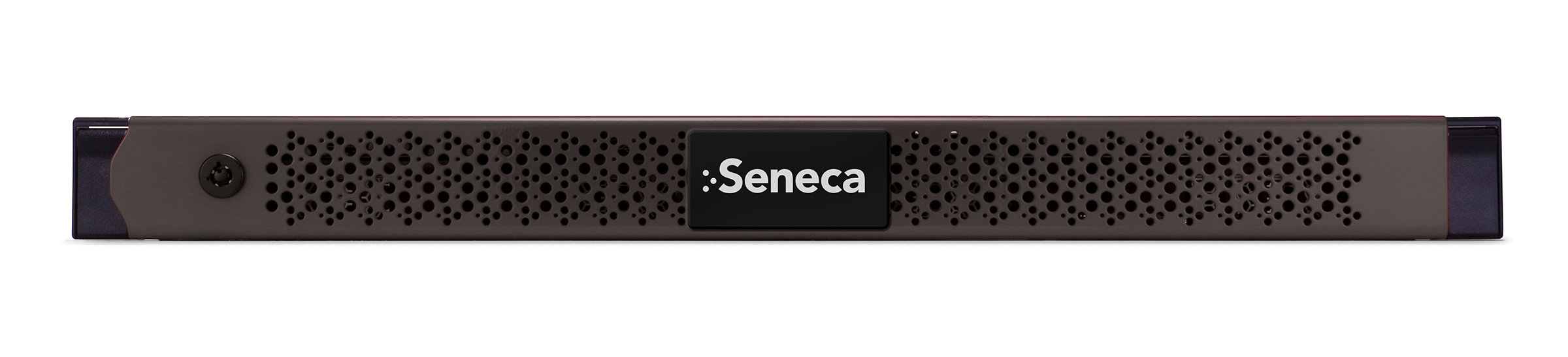

Confidence 100 series 1U Rackmount - Private Label Images

Front Left

Front Right Top

Confidence 100 series 1U Rackmount - No Bezel Images

Front Left Top

Front Right Top
