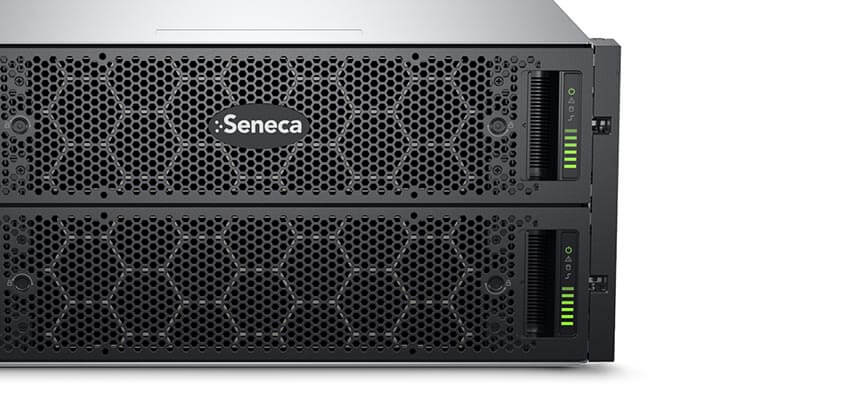

Seneca xVault Corporate Storage Appliance
Ideal for Mid-Tier Projects and Installations.
- Intel® Xeon® D-1500 Processor (Formerly Broadwell-DE) 2 cores 2.2GHz
- Five Year Global next business day on-site service
- Up to 4.032PB (1008TB per enclosure with up to 3x expansion chassis)
- 10Gb iSCSI SFP+ multiprotocol connectivity
- Ideal for small to mid-tier projects and installations
Solution
Key Features
- Easy setup with all-inclusive software
- Simple HTML 5 management interface
- Easy bolt-on expansion for scalability
- SAS SED (self-encrypting drives)
- Built-in data protection features

Intel® Xeon® Processor
Specifications
System
Mechanicals
Scroll For More
RAID | Data RAID Level: 0, 1, 5, 6, 10, 50 & JBOD |
Multiprotocol Connectivity | 10Gb iSCSI SFP+ |
Management Interface | Web GUI, Serial/USB, Network CLI |
Processor | Intel® Xeon® D-1500 processor (formerly Broadwell-DE) 2 cores 2.2GHz |
Warranty | 5 Year NBD onsite support |
Form Factor | 5U 84 BAY rackmount server and expander |
Power Supply | 2200W Redundant Flex PSU |
BTU/hr | 7507 BTU |
Power Draw | 100-240 VAC 11.07-9.23A (x2) 50/60Hz |
Cooling | Active |
Bays | 84 x 3.5″ |
Max Raw Storage | Up to 4.032PB (1008TB per enclosure with up to 3x expansion chassis) |
Ambient Operating Temp | 5C to 40C |
Mounting | Standard ISO Rack |
Dimensions (w x h x d) | 8.75 x 17.5 x 36.12 inches / 222.25 x 444.5 x 917.448 mm |
Weight | 298 lbs. / 135.12 kg |
