Seneca VWC-MINI Video Wall Controller

Video wall controller disguised as a media player.


  • 6th generation Intel® Core™ i7 Processor
  • Up to 8 High Density 4K outputs
  • Up to 9 High Density HD outputs
  • Full height, full width GPU options
  • 4K capable
  • Short depth 1U form factor
Solution

Digital Signage

Specifications

System

Mechanicals

Scroll For More

Processor 6th generation Intel® Core™ i7-6700 Processor
Operating System Windows 10 Pro
Manufacturer Seneca®
Graphics Intel® HD Graphics 530
Validated Discrete GPU options from AMD®, Matrox®, and NVIDIA®
Displays Capability Up to 8 High Density 4K Displays
Up to 9 High Density HD Displays
Single Monitor Media Playback 4K; 2160p @ 60fps
Multiple Monitor Media Playback 8 x 2160p @ 30fps
9 x 1080p @ 60fps
Orientation Landscape and Portrait Capable
Video Output Dependent on GPU options
Storage Up to 2.5TB (1 x mSATA; 2 x 2.5″ HDD or SSD)
RAID RAID 0 and 1
Optical Drive NA
Memory 8GB (Up to 32GB) DDR4 2133MHz
Connectivity 2 x Intel® Gigabit LAN
Optional:
Dual Band Intel WIFI 802.11 AC w/ Bluetooth 4.0 and Intel WIDI
Hauppauge USB TV Tuner
USB 4 x USB 3.0 (Rear)
Expandability 2 x LAN (RJ-45)
1 x Serial (RS-232)
1 x Serial (RS-232/422/485)
2 x DisplayPorts
1 x HDMI
1 x Line Out
1 x Mic In
Expansion Slot 1 x PCIe x16
1 x mini-PCIe
1 x mSATA/mini-PCIe
Warranty 5 Year Depot Warranty
Form Factor 1U; Mini-ITX
Thermals 50ºC (122ºF) Max at full CPU utilization
Power Supply 250W Ultra Quiet PSU
Power Draw 175W
Bays 3 x 2.5” Drive Bays
Cooling 3 x 40mm low noise fans
Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 5%~80% Relative Humidity (non-condensing)
Storage Humidity 5% ~ 90% Relative Humidity, Non-condensing
Dimensions (w x h x d) 17.25 x 1.75 x 12 inches / 438 x 45 x 305 millimeters
19 x 1.75 x 12 inches / 483 x 45 x 305 millimeters with handles
Weight 11 lbs / 5 kg

Show Details

VWC-MINI Images

Front Left

Front Right Top

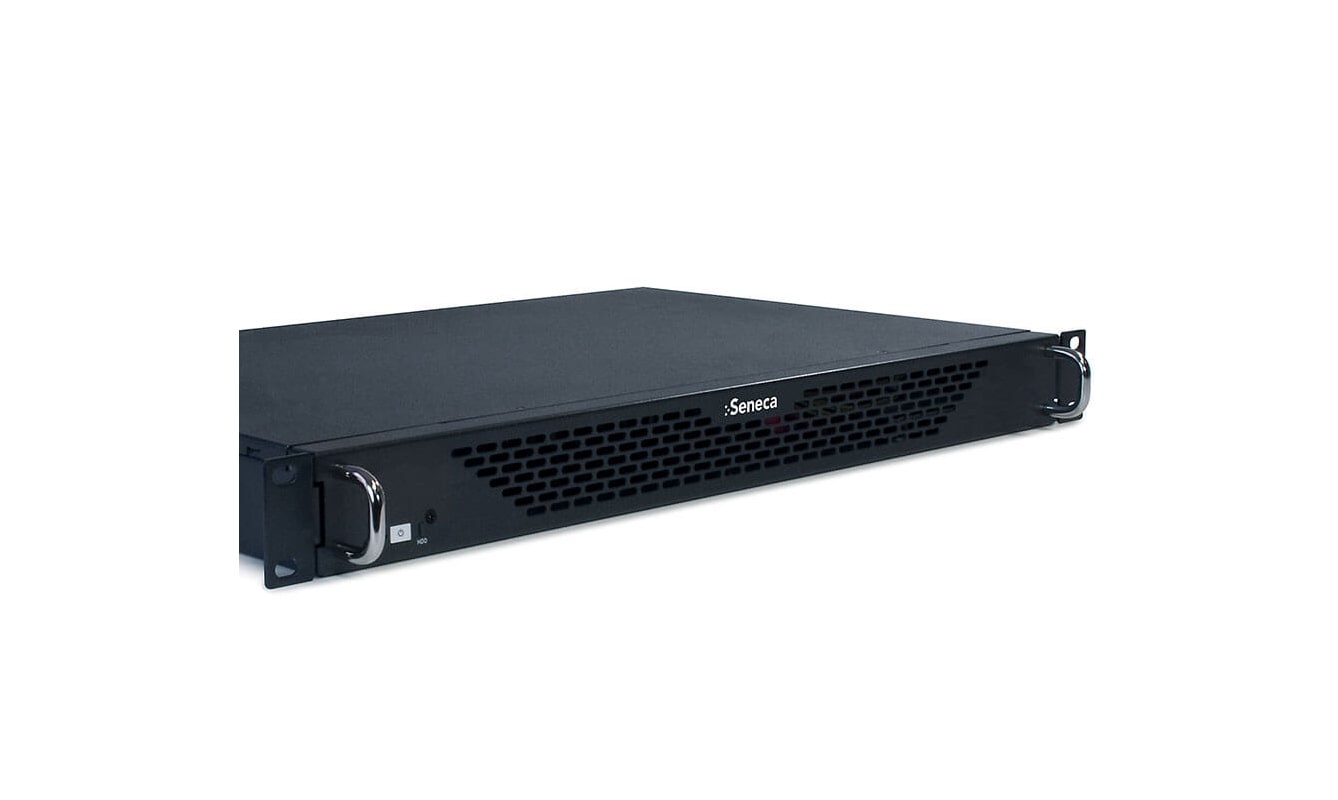

Front Right Top With Mounts
