Seneca VWC-Plus Video Wall Controller
Video Wall Controllers

Seneca VWC-Plus Video Wall Controller

Best-in-class performance while maintaining versatility.


  • 6th generation Intel® Core™ i7 Processor
  • Up to 32 independent video outputs
  • True 4K capable
  • HDCP Compliant with custom parallel sync technology
  • Ideal for video walls and control rooms
Solution

Digital Signage

Specifications

System

Mechanicals

Scroll For More

Processor 6th gen Intel® Core™ i7-6950X Processor Extreme Edition 4.0GHz
6th gen Intel® Core™ i7-6900X Processor 4.0GHz
6th gen Intel® Core™ i7-6850X Processor 3.8GHz
6th gen Intel® Core™ i7-6800X Processor 3.6GHz
Operating System Windows 10 Professional
Manufacturer Seneca®
Graphics Validated Discrete GPU options from AMD®, Matrox®, and NVIDIA®
Displays Capability Up to 32 Displays
Single Monitor Media Playback 4K; 2160p60fps
Multiple Monitor Media Playback 28 x 4K; 2160p60fps
Orientation Landscape and Portrait Capable
Video Output Validated Discrete GPU options from AMD®, Matrox®, and NVIDIA®
Audio Onboard 5.1 Surround Sound. (7.1 optional)
Storage 1TB HDD (Up to 24TB)
1 x M.2 Sata 6GB/s
Optical Drive 24x DVDRW (optional BluRay)
Memory Up to 128GB DDR4 2133MHz
Connectivity LAN 1: Intel® I210-AT, Gigabit LAN Controller
LAN 2: Intel® I218LM, Gigabit LAN
Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
USB 12 x USB 2.0 (2 front, 10 back)
Expandability 2 x RJ45
2 x eSATA 6Gb/s
1 x S/PDIF Optical
Dual 10Gb/s SATA Express
32Gb/s M.2 x4 Speed
Q-Code logger/USB BIOS Flashback
8-Channel audio with DTS
Expansion Slot 7 x PCIe 3.0/2.0 x16
(single x16; dual x16/x16; triple x16/x16/x16; quad x16/x16/x16/x16; seven x16/x8/x8/x8/x8/x8/x8)
RAID RAID 0, 1, 5, 10
Warranty 5 Year Depot Warranty
Optional NBD Parts Replacement
Power Supply Up to 1600W 80+ Platinum Power Supply (Redundant Power Optional)
Power Draw 140W TDP; Up to 1600W at high-end configs
Bays 3 x 5.25″ External
4 x 3.5″ Internal
1 x Slim ODD
Cooling 1 x 70mm fan
2 x 80mm fans
3 x 120mm fans
Operating Temperature 0 ~ 60°C (32 ~ 140°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 0 ~ 90% Relative Humidity, Non-condensing
Storage Humidity 0 ~ 90% Relative Humidity, Non-condensing
Dimensions (w x h x d) 16.9 x 6.9 x 21.5 inches / 429 x 175 x 546 millimeter

Show Details

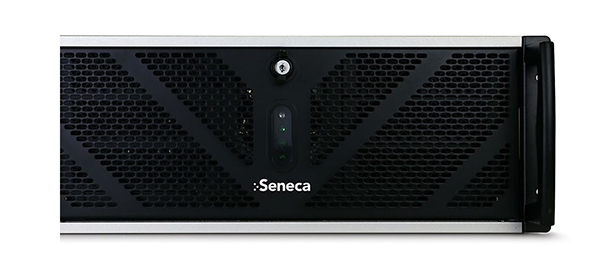

VWC-PLUS Images
