Seneca xView Professional Plus Viewing Station
Viewing Stations

Seneca xView Professional Plus Viewing Station

Expanded Mid-Range Surveillance Installation


  • 12th generation Intel® Processor Family
  • Rackmount and mid-tower form factors
  • Ability to handle up to 4 monitors for larger viewing solutions
  • Ideal for expanded mid-range surveillance installations
Solution

Surveillance

Specifications

System

Mechanicals

Scroll For More

Processor 12th Generation Intel Core i7
Operating System Windows 10 IoT Enterprise
Memory 16GB DDR4 2666MHz
Storage 256GB SSD
Graphics Nvidia T1000 or A2000 with 4x mDP
Connectivity 1 x 1GbE LAN port
Displays Supported Up to 4
Rear I/O Ports 2 x USB 2.0
2 x USB 3.2 Type A Gen2
2 x USB 3.2 Type A Gen1
Warranty 3-Year Global Next-Day, On-Site Warranty,
Keep your Hard Drive Option

Power Supply

Tower:
Rackmount



500W Platinum PSU
550W Platinum PSU

Maximum Internal Drives 2 TB Data Drive

Front Ports

Tower:

Rackmount:



2 x USB 3.2 Type A Gen2
1 x USB 3.2 Type C Gen2x2

1 x USB 3.1 Type-C
2 x USB 3.1 Type-A

Dimensions (w x h x d)

Tower:

Rackmount:

6.81 x 14.52 x 16.53 in.
173 x 369 x 420 mm

18.98 x 1.68 x 23.19 in.
482 x 42.8 x 589.1 mm

Weight

Tower:

Rackmount:



18 lbs / 8.5 kg

21 lbs. / 9.5 kg

Show Details

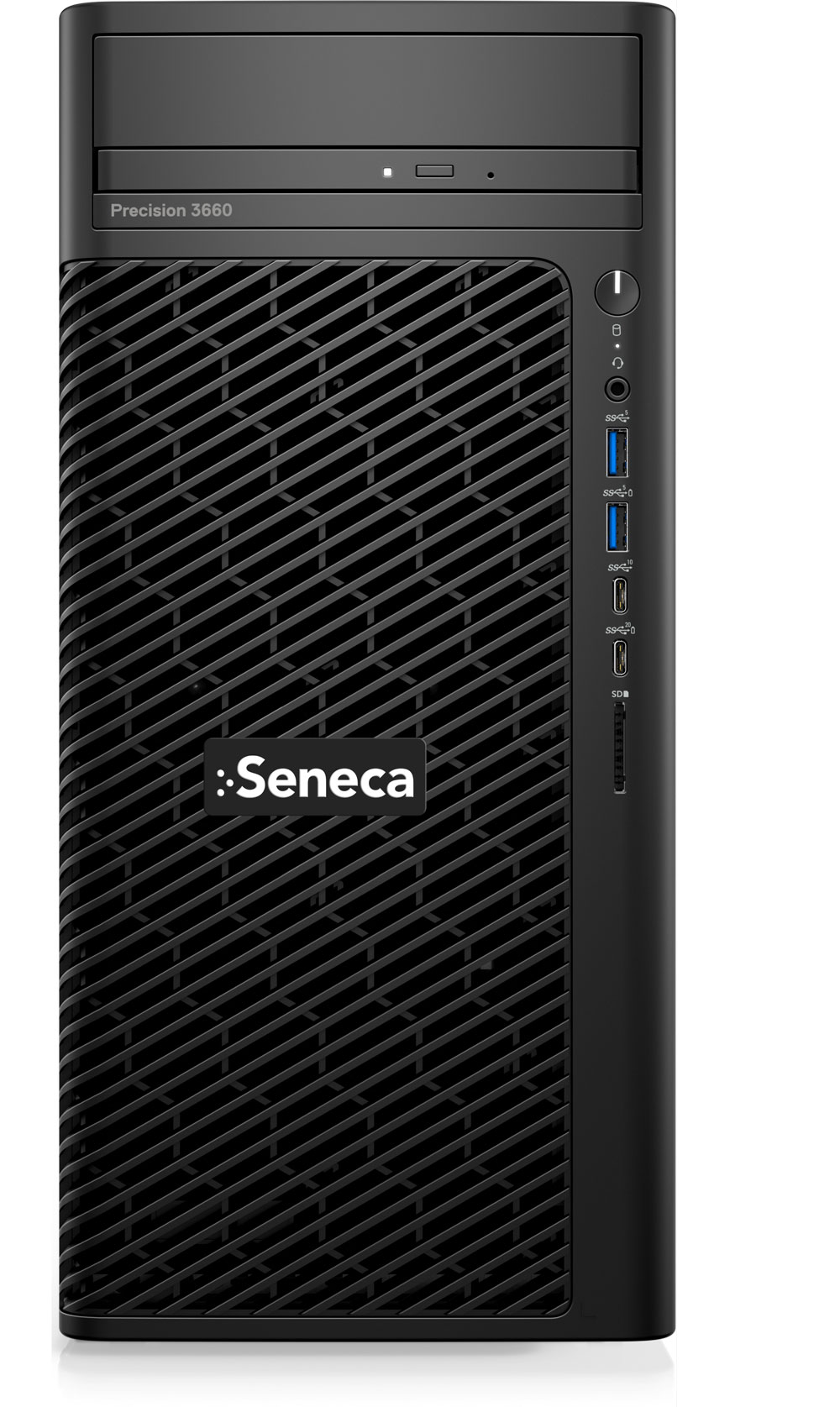

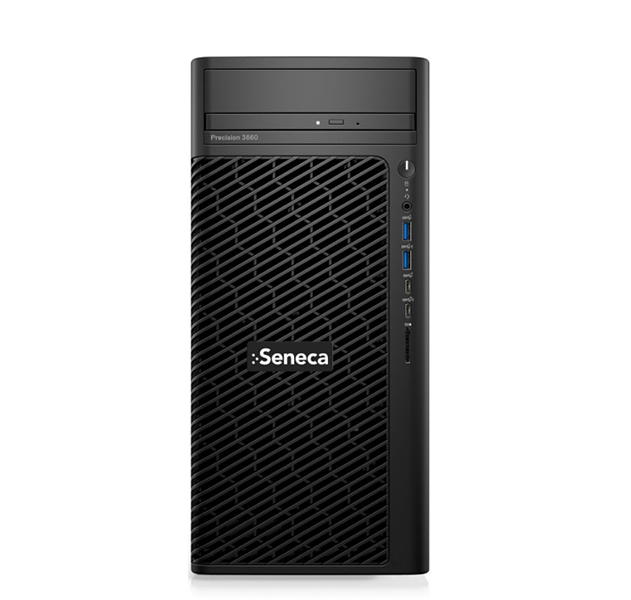

xView Professional Plus Tower Image
