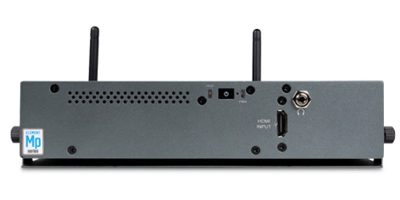

Element Edge Computer
MSRP starting at $550
The most flexible small form factor industrial computer
- Versatile processing choices
- Thermal flexibility
- Multi-OS compatibility
- Robust connectivity
Solution
Key Features
-
Compatible with Windows 10 IoT, Linux and ChromeOS Flex
-
Intel® processors (Celeron®, Pentium®, i3, i5, or i7)
-
Exclusive embedded and certified Verizon 4G/LTE dual high gain antenna.
-
Qualified to work with AWS Greengrass IoT
-
GPIO header
-
Active and passive cooling options
-
Internal and external power supply
-
Wide temperature component options
-
Tool-less VESA mount
-
TAA compliant
Intel® Celeron® Processor
Specifications
System
Scroll For More
|
Element Chassis |
Actively Cooled |
Fanless Computer |
|
Processor |
Pentium® J6426 and Celeron® N6211 Core™ i3-1115G4, Core™ i5 1135G7, Core™ i7 1165G7 *AMD Ryzen V1000 1605b |
|
|
Memory |
4GB to 64GB |
|
|
Storage – Std and LTE – Capture |
1x M.2 SATA or NVMe SSD 250GB-2TB 1x mSATA 250GB |
1x M.2 SATA or NVMe SSD 250GB-2TB N/A |
|
Graphics |
2x HDMI 2.0 Ports Pentium®/Celeron®- Intel® UHD Graphics for 10th Gen Intel® Processors 4x HDMI 2.0 Ports Core™ i3- Intel® UHD Graphics for 11th Gen Intel® Processors Core™ i5- Intel® Iris® Xe Graphics Core™ i7- Intel® Iris® Xe Graphics Ryzen™ Radeon™ Vega 8 Graphics |
|
|
Communication |
2x GbE LAN Ports Intel 9260 WIFI/BT Adapter (Optional) |
|
|
Capture |
M.2 EcoCapture – No LTE |
N/A |
|
LTE |
MiniPCIe – LTE Card – No Capture |
|
|
Audio |
Realtek® ALC269 |
|
|
Front I/O |
1x 3.5in Audio Jack (Via Internal Motherboard Header) Optional 1x HDMI 2.0 Input (When Selecting HDMI Capture Option) |
1x 3.5in Audio Jack (Via Internal Motherboard Header) N/A |
|
Rear I/O |
2x HDMI 2.0 for Celeron®/Pentium® 2x RJ45 LAN Ports 4x HDMI 2.0 4x USB 3.1 Gen2 1x DC Plug (External Power Chassis Only) Optional 2x Antennas for Wi-Fi Optional 1x 8-pin GPIO |
2x HDMI 2.0 for Celeron®/Pentium® 2x RJ45 LAN Ports 4x HDMI 2.0 4x USB 3.1 Gen2 1x DC Plug (External Power Chassis Only) Optional 2x Antennas for WIFI N/A |
|
Side I/O |
Optional Dual Antenna for Cellular |
|
|
Power Delivery |
Internal Power Version – 50w Internal Power Supply External Power Version – 60w AC Adapter |
|
|
Cooling |
Actively Cooled Chassis – Fansink + Additional Fan |
Fanless Chassis – Heatspreader + Heatsink Enclosure |
|
Dimensions |
External Power LxWxH – 170mm x 108.4mm x 44.5mm (VESA Mount 50.4mm) Internal Power LxWxH – 210.5 x 108.4mm x 44.5mm (VESA Mount 50.4mm) |
External Power LxWxH – 170mm x 108.4mm x 50.8mm (VESA Mount 56.8mm) Internal Power LxWxH – 210.5 x 108.4mm x 50.58mm (VESA Mount 56.8mm) |
|
Ambient Operating Temperature |
0-40° C |
|
