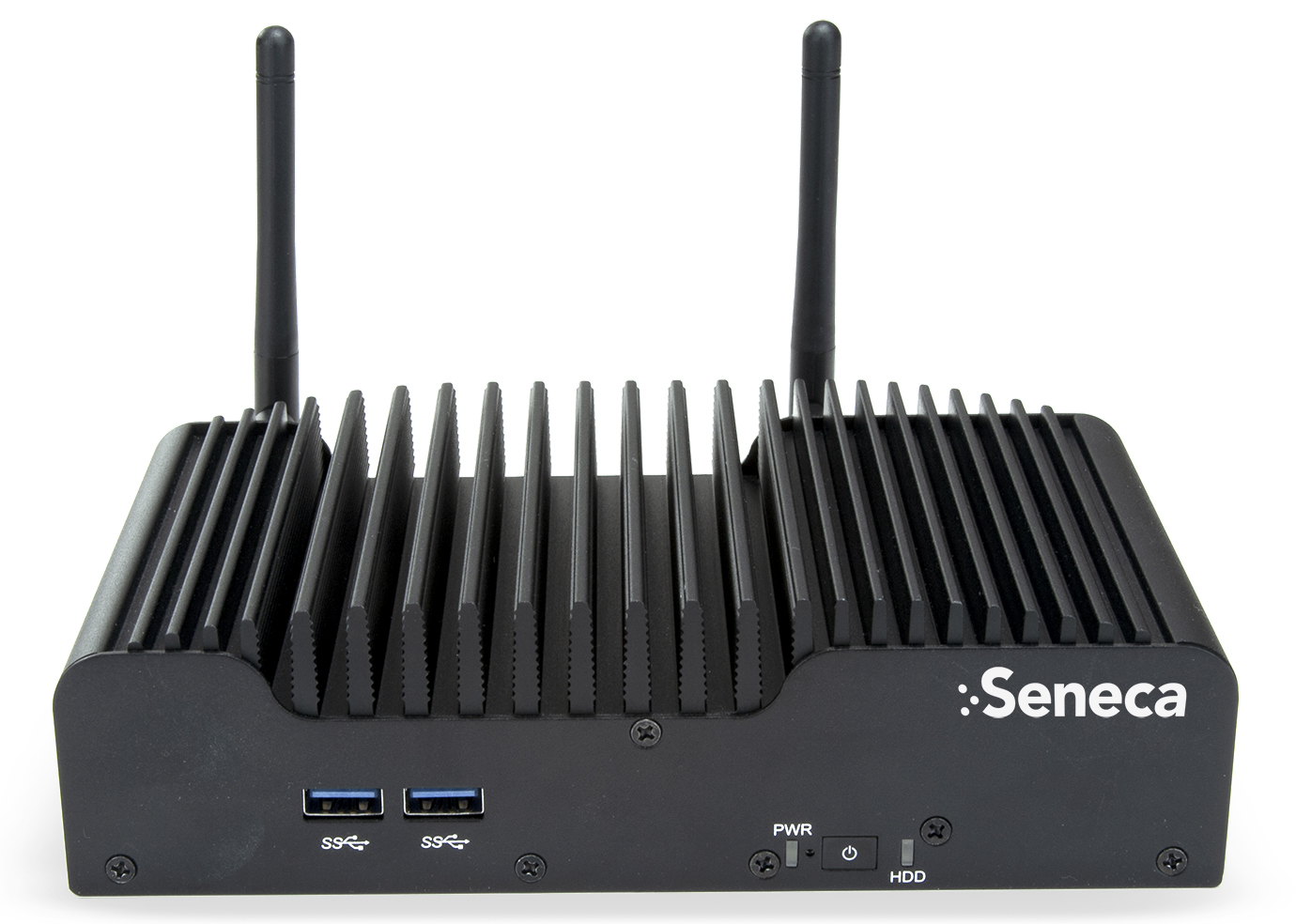

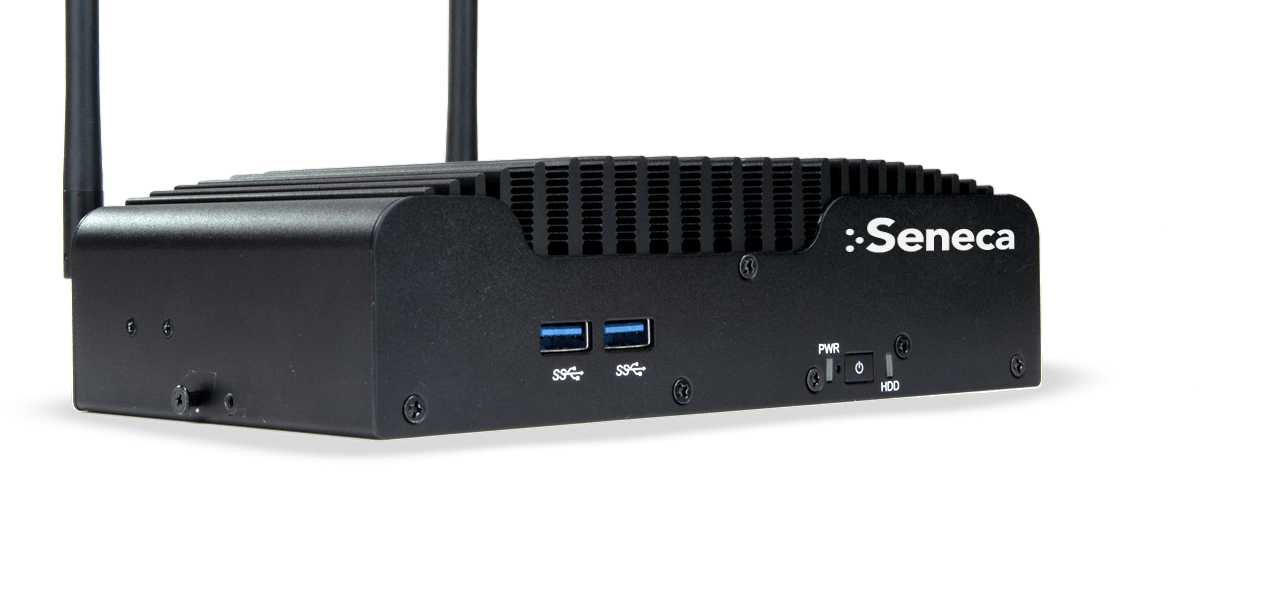

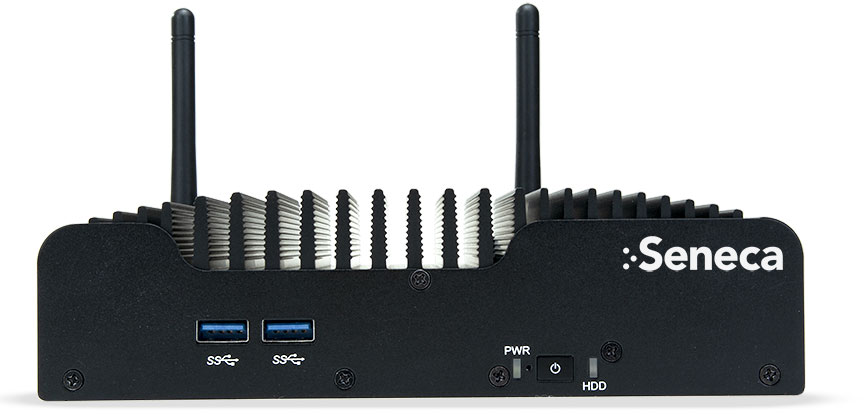

Seneca Fanless HDN Media Player
Solid state design with internal power.
- Intel® Core™ i5 vPro™
- 100% solid-state design
- Internal power
- Dual HDMI 2.0
- 4K playback
Solution
Key Features
- Only fanless Intel NUC design with standard internal power
- Intel® Core™ i5 vPro™
- Performance Enhanced for Digital Signage
- Dual 802.11ac WiFi 2×2
- Up to 32GB DDR4 2133MHz
- GbE LAN
- Up to 1TB M.2
7th gen Intel® Core™ i5 vPro™
Specifications
System
Mechanicals
Scroll For More
Processor | Intel® CoreTM i3 7100U (3M 2.4GHz) Intel® CoreTM i5 vProTM 7300U (4M 2.6GHz) |
Operating System | Windows 10 IOT 10 Enterprise Linux |
Manufacturer | Seneca® |
Graphics | Intel® HD Graphics 620 |
Monitors Supported | Dual 4K |
Orientation | Landscape and Portrait Capable |
Video Outputs | 2 x HDMI 2.0a (1 w/CEC) |
Playback | 1 x 2160p / 60 fps 2 x 2160p / 30 fps 2 x 1080p / 60 fps |
Storage | Up to 1TB M.2 SSD |
Memory | Up to 32GB DDR4 2133MHz 1.2V SO-DIMM Dual Channel |
Connectivity | 1 x Intel® i219-LM 10/100/1000 Intel® Wireless-AC 8265 802.11ac 2×2 |

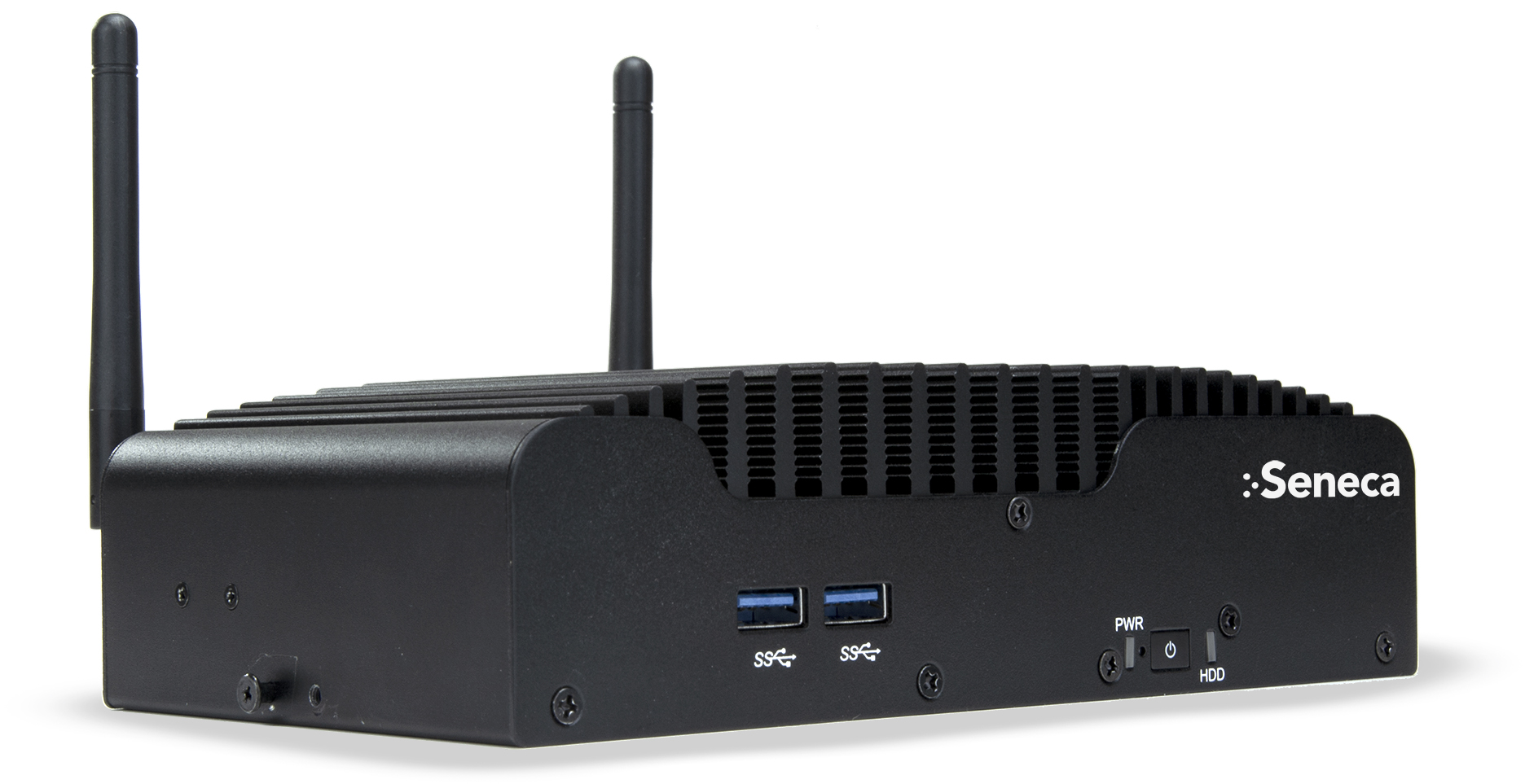

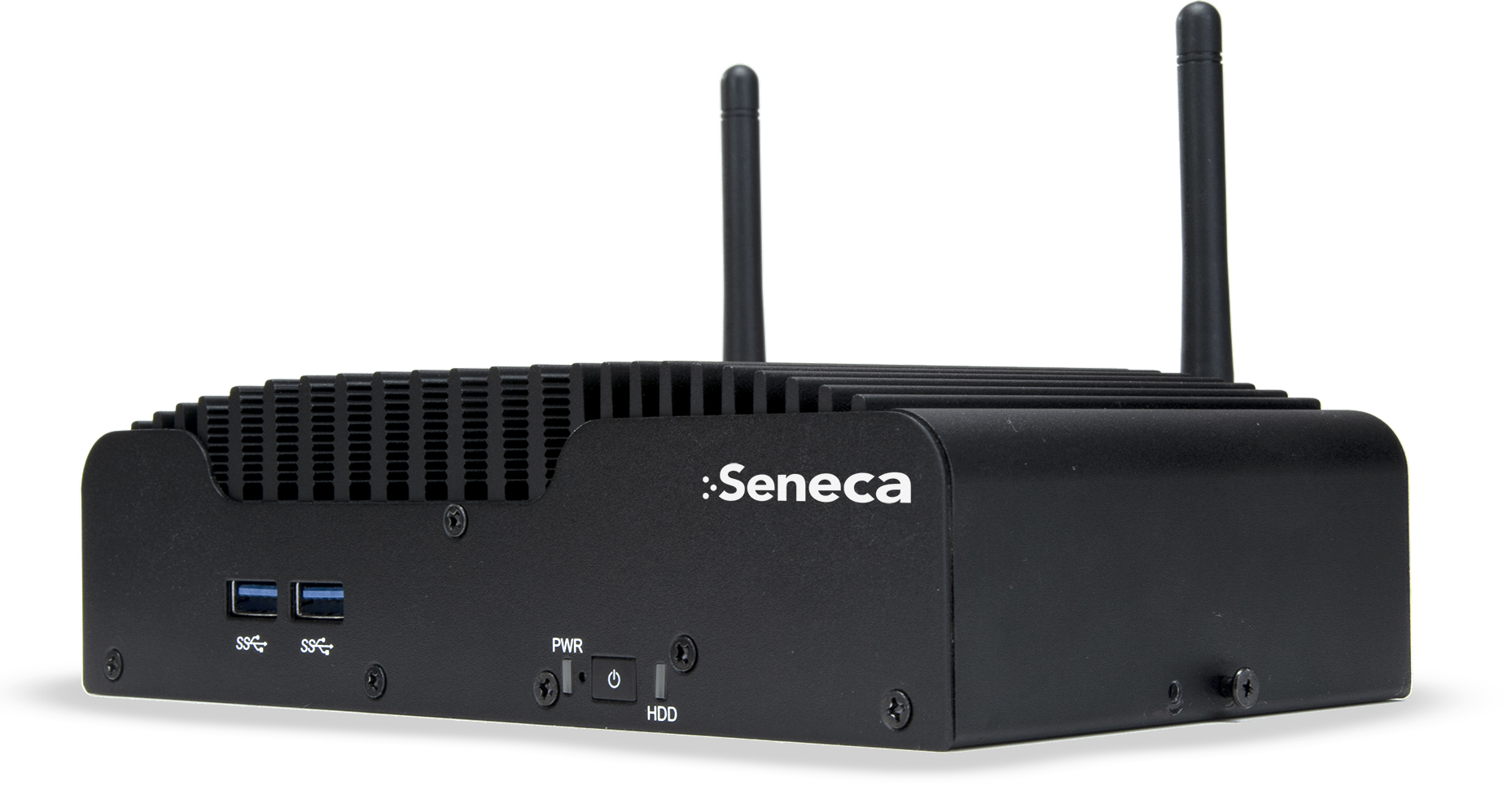

Front I/O Ports | 2 x USB 3.0 |

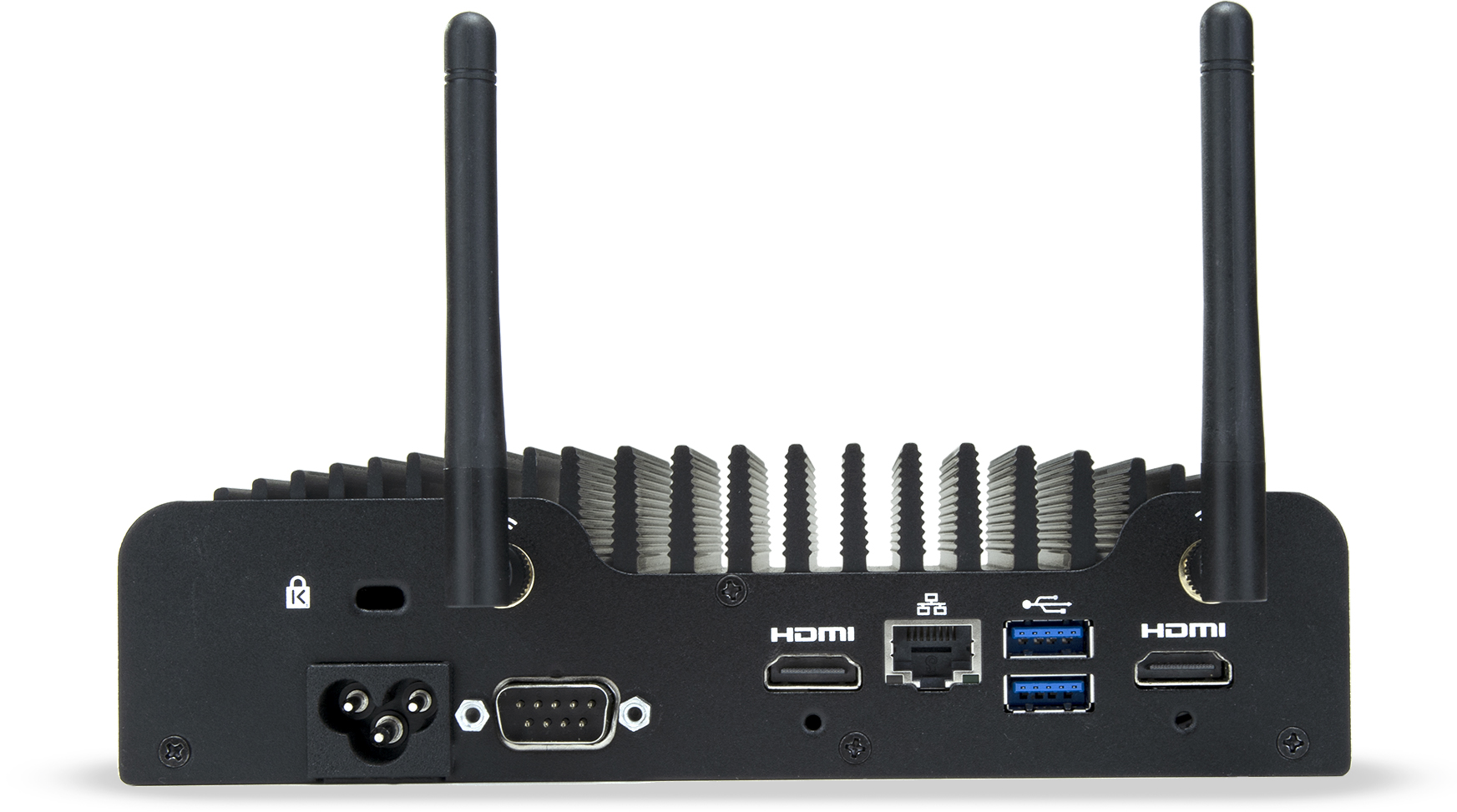

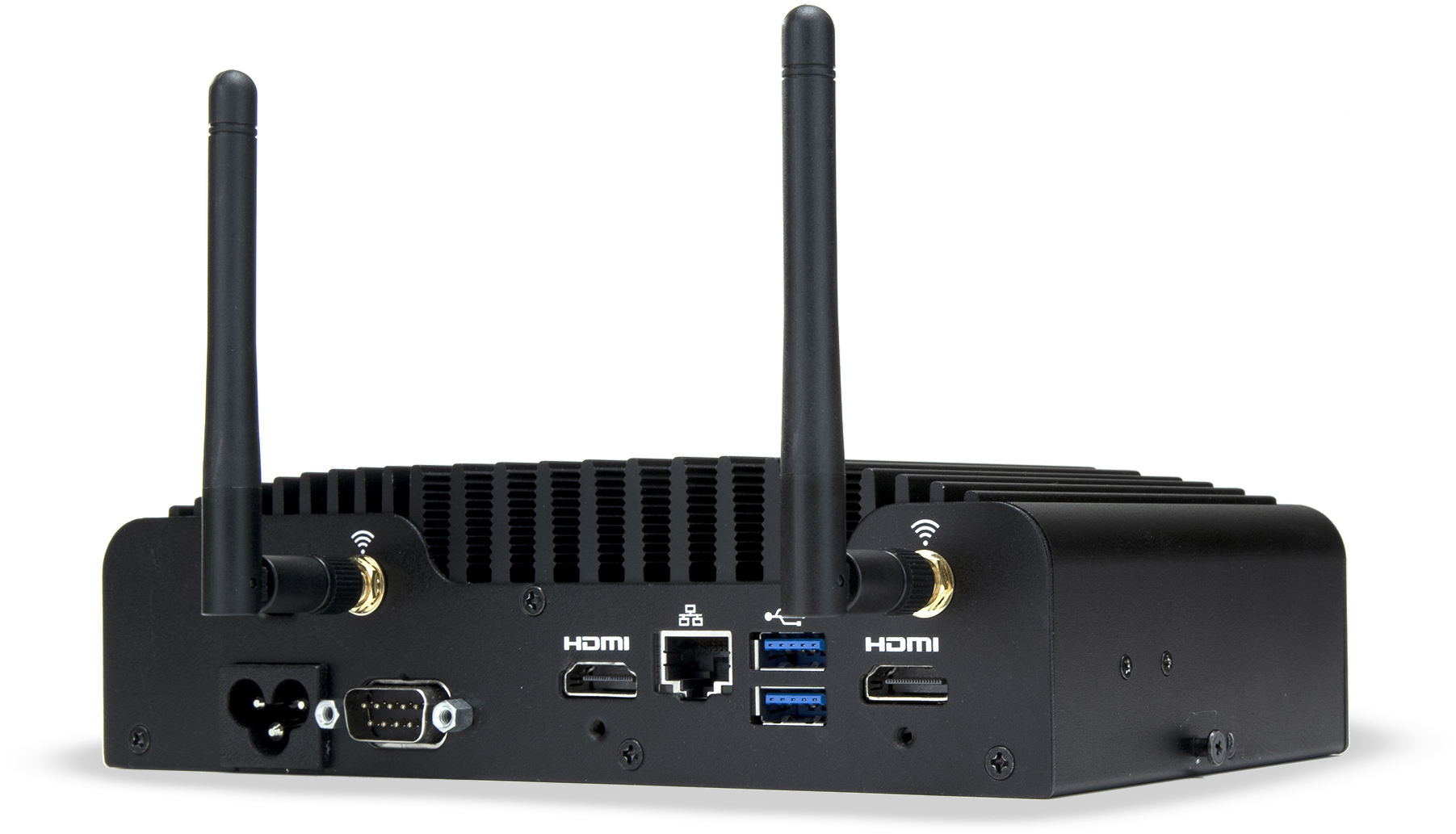

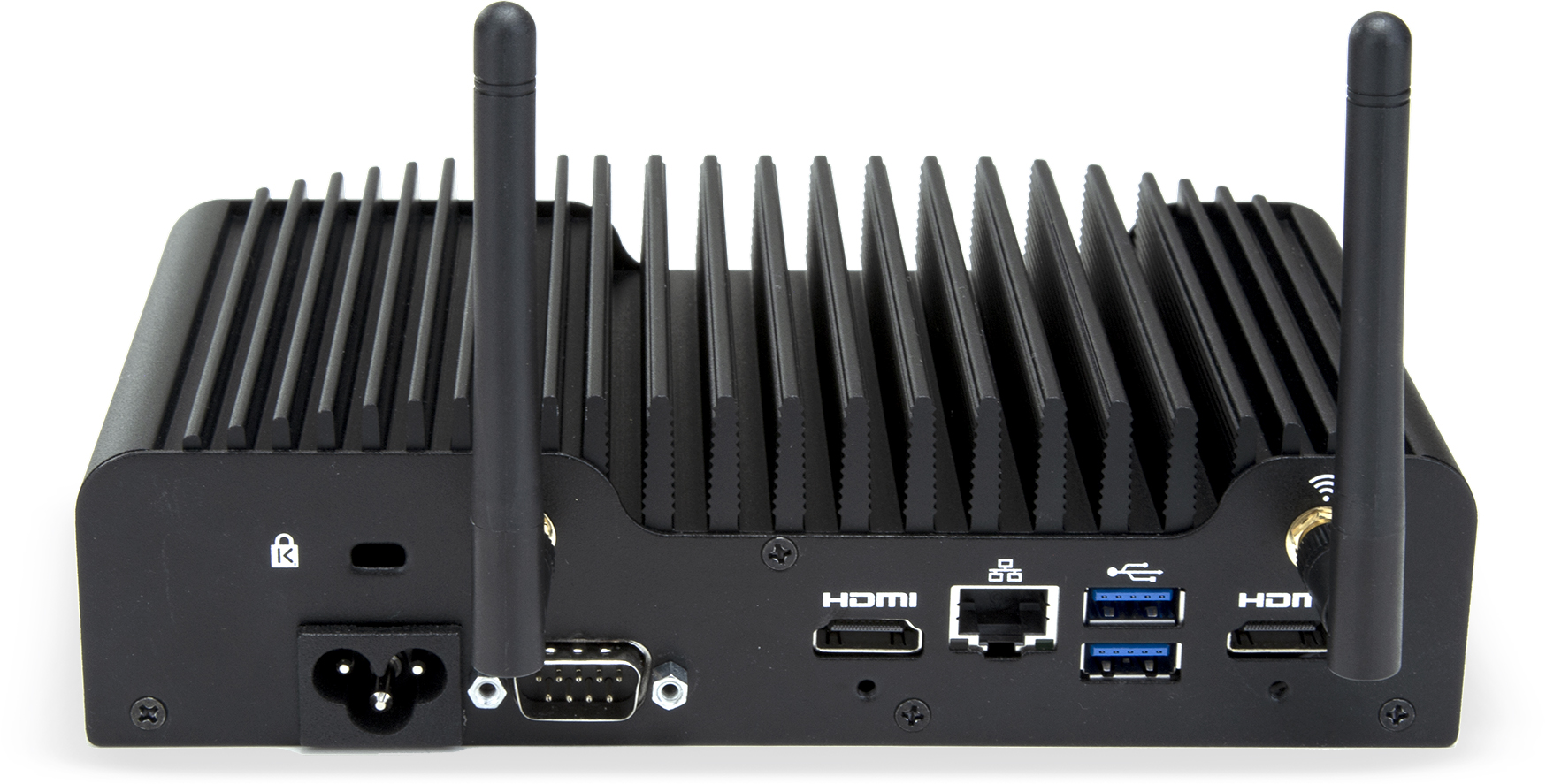

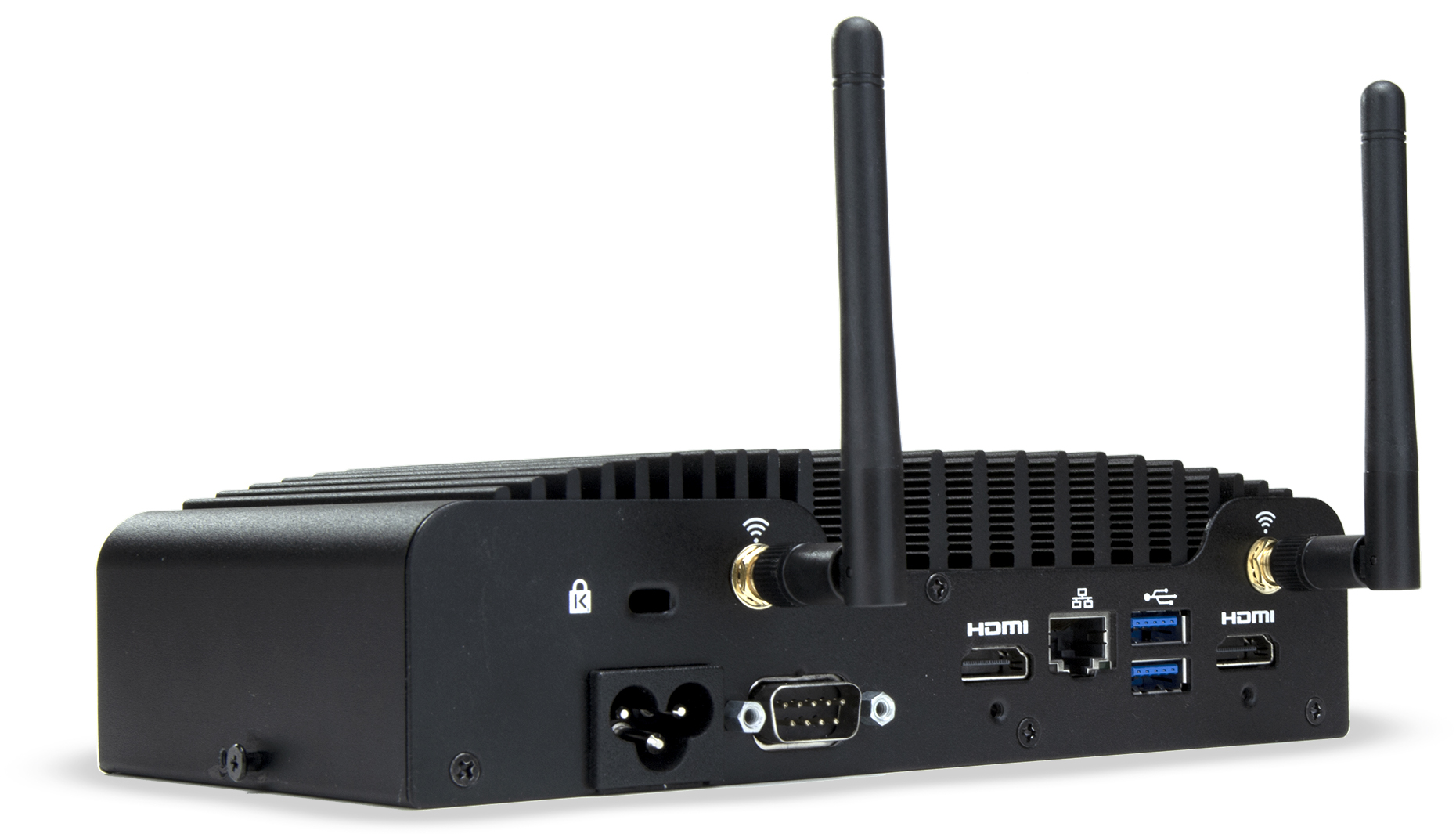

Rear I/O Ports | 2 x USB 3.0 ports |
Warranty | 39-Month |
Thermals | 40°C (104°F) at full system utilization |
Power | 100-240VAC |
Mounting | VESA/WALL 75mm and 100mm |
Safety/Emissions | UL, CE, FCC |
Dimensions (w x h x d) | 7.5 x 2 x 4.3 inches / 190.5 x 50.8 x 109.2 millimeters |
Weight | 2.8 lbs / 1.27 kg |
